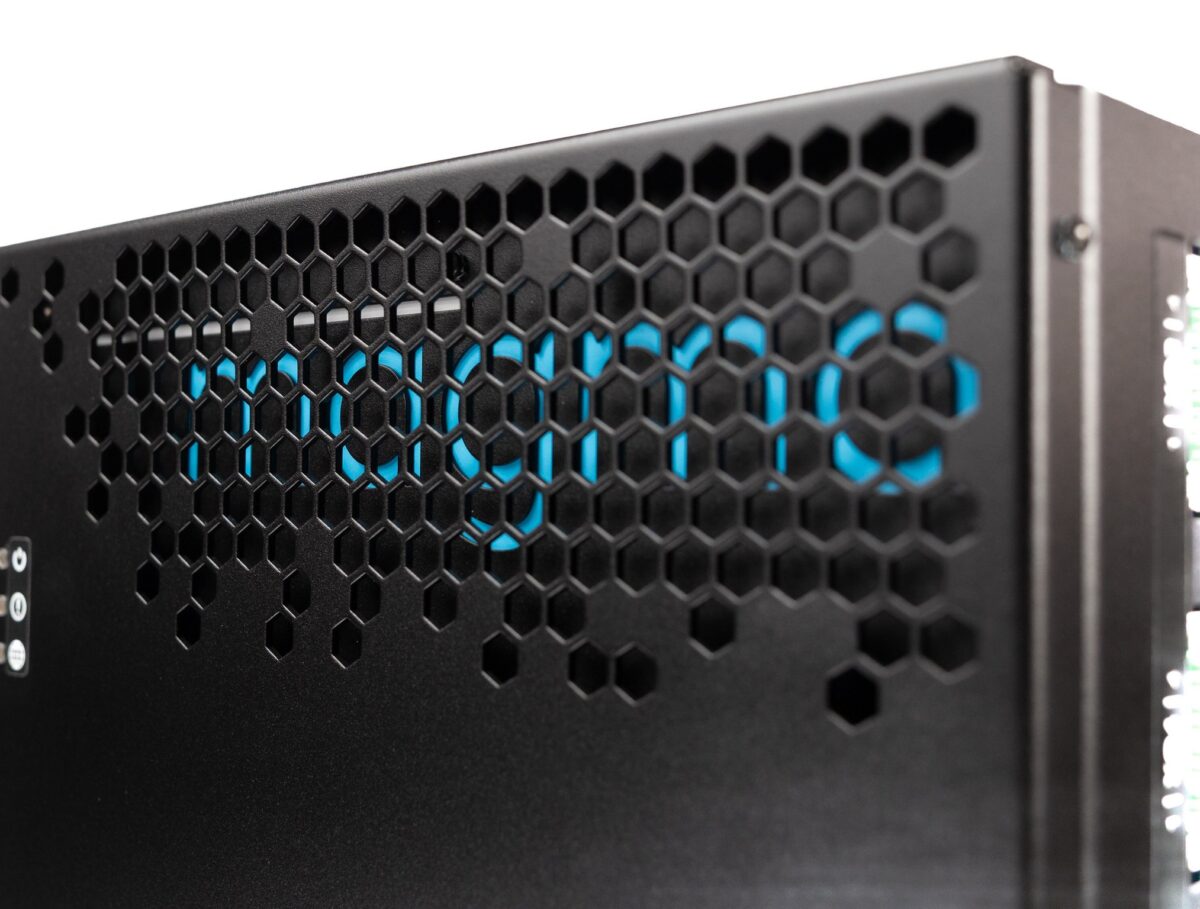

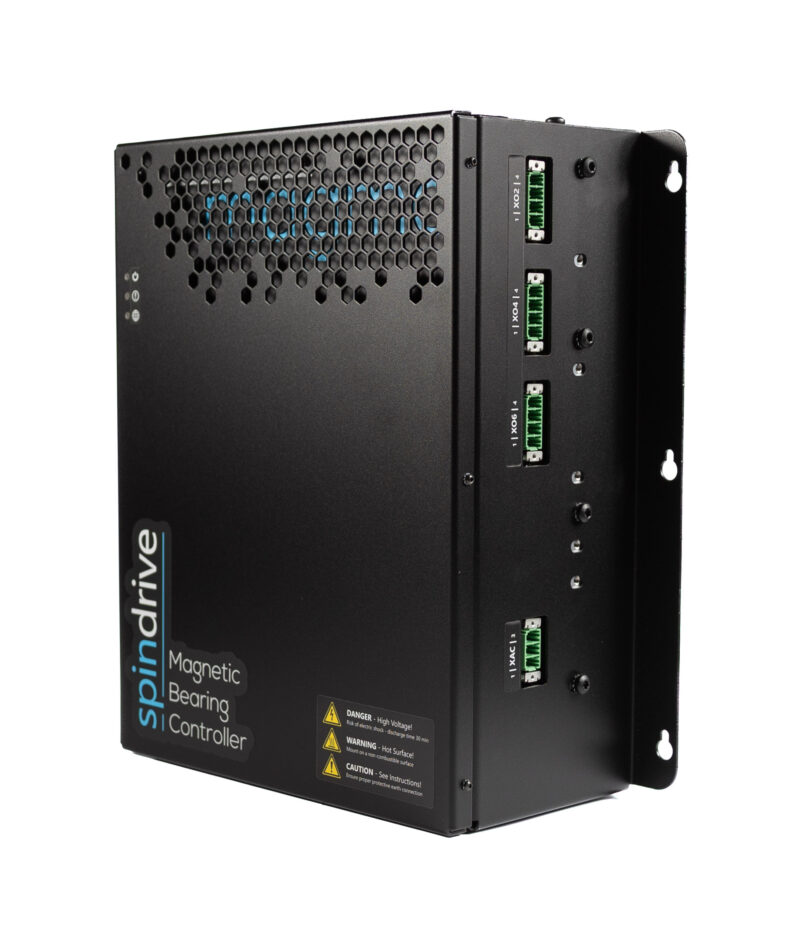

Magma® X800
Powerful AMB controller for heavy-duty machines from 150 kW to over 3 MW.
Engineered for demanding industrial and high-speed operation
Magma X800 is a powerful and cost-efficient controller for Active Magnetic Bearing systems. It supports AMB systems ranging from 150 kW to 3 MW with rotational speeds from a few rpm to over 100,000 rpm. Compact and versatile, the X800 controller is ideal for various machinery including turbo blowers, compressors, expanders, flywheels and high-speed motors across a wide range of industrial applications.
Advanced multichannel AMB control
Built for demanding production environments requiring reliable AMB performance, the Magma X800 controller features 5-axis differential position control, 12 power output channels and seamless OPC UA / Modbus integration with industrial automation systems.
Condition monitoring capability
Magma X800 continuously processes position-sensor inputs at 10,000 Hz and adjusts currents in 12 channels in real time. With the connectivity option enabled, the online condition monitoring platform provides direct access to dynamics, forces and control behavior inside the machine. A digital twin keeps the control model aligned as the machine ages, enabling predictive maintenance without additional sensors.
One controller family for your product range
The same Magma X800 controller can be used for a wide range of OEM machines. It is ideal for standardization across new product lines or retrofitting existing machines. Automated and remote commissioning reduces on-site engineering travel. You benefit from one controller, one parts list and one supporting team across your entire product portfolio.
High-speed machines powered by Magma X800

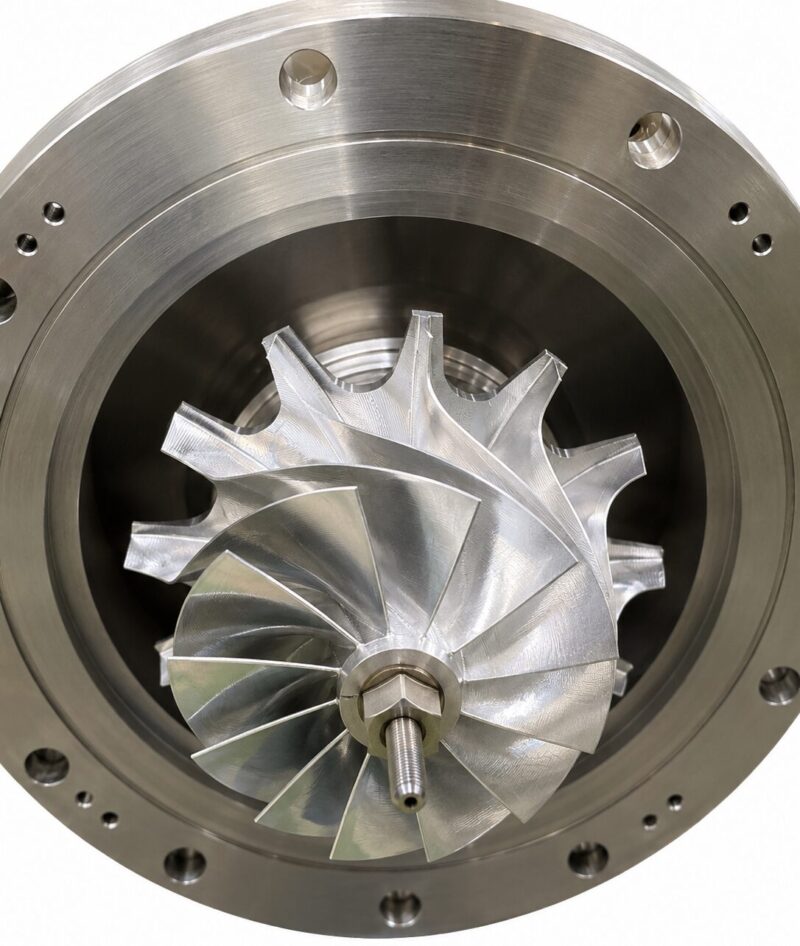

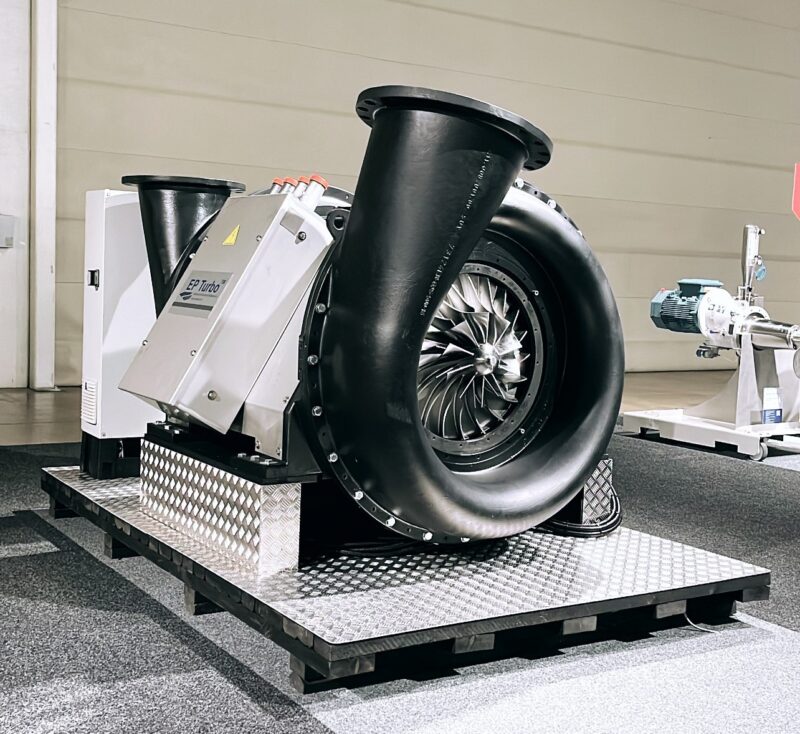

Turbo blowers and compressors
Industrial air and semiconductor manufacturing
Turbo expanders, ORC units and microturbines
Energy recovery and power generation
High-speed motors
Direct-drive industrial machinery

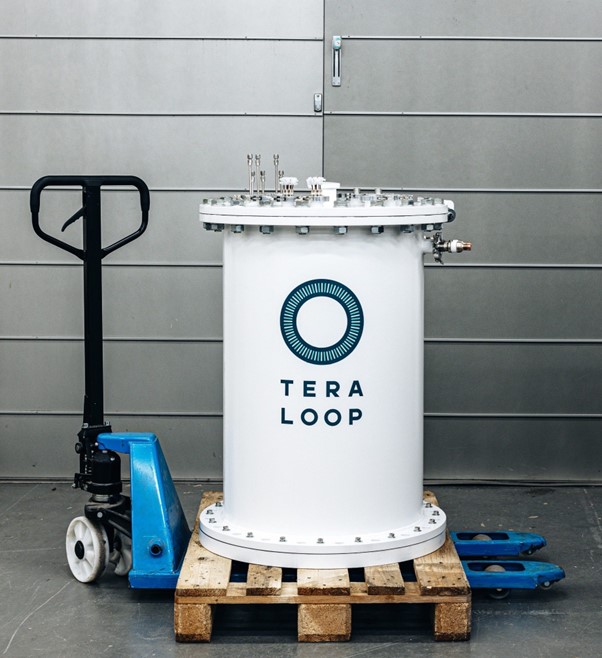

Flywheels
Energy storage and frequency regulation
Heat pumps and chillers
Industrial heating, cooling and refrigeration
Hydrogen turbomachinery
Hydrogen production, compression and distribution
Technical specifications
Magma X800 is a 12-channel AMB controller combining high output capability and seamless integration into industrial automation systems.
| Input voltage range |
100 V AC … 250 V AC (−15% … +10%) 110 V DC … 250 V DC (−18% … +40%) |
|---|---|
| AC frequency range |
45 Hz … 65 Hz |
| Choice of suitable circuit breakers (AC) |
16 A, B-curve |
| Amplifier output voltage range |
0 V … 230 V (rms) |
| Amplifier continuous output current |
0 A … 16 A (rms) |
| Maximum amplifier output current |
±22 A (peak, <10 s) ±28 A (trip limited) |
| Amplifier voltage modulation |
3-level PWM, 16 kHz |
| Dimensions (L / W / H) |
397 mm / 370 mm / 158 mm |
| Mass |
15 kg |
| IP classification |
IP20 |
| Digital communication interface |
2 Ethernet (1000BASE-T): OPC UA, MODBUS, TCP/IP |
| Inputs |
6 digital, 12 analogue, 8 RTD (PT-100) |
| Outputs |
7 digital, 2 relay |
| Ambient temperature |
0 °C … 40 °C (up to 55 °C with derating) |
| Approvals |
CE, LVD (EN 61800-5-1), EMC (EN 61800-3), RoHS, REACH |
From Magma X800 to a complete AMB system
Magma X800 is the heart of a fully integrated AMB system.

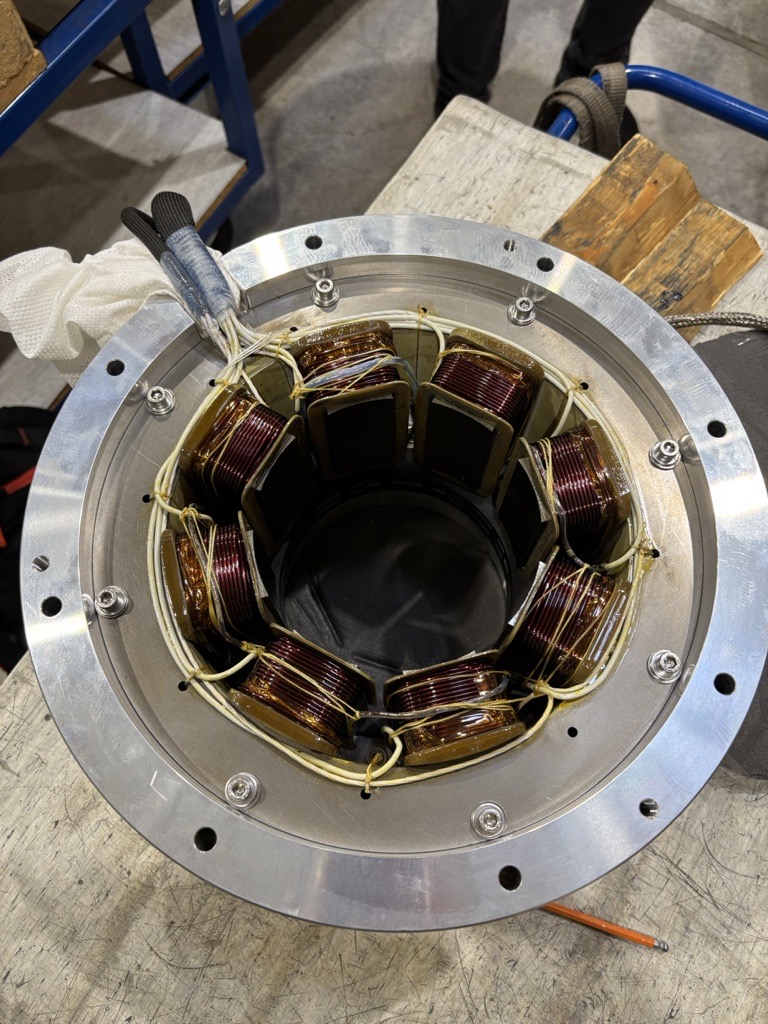

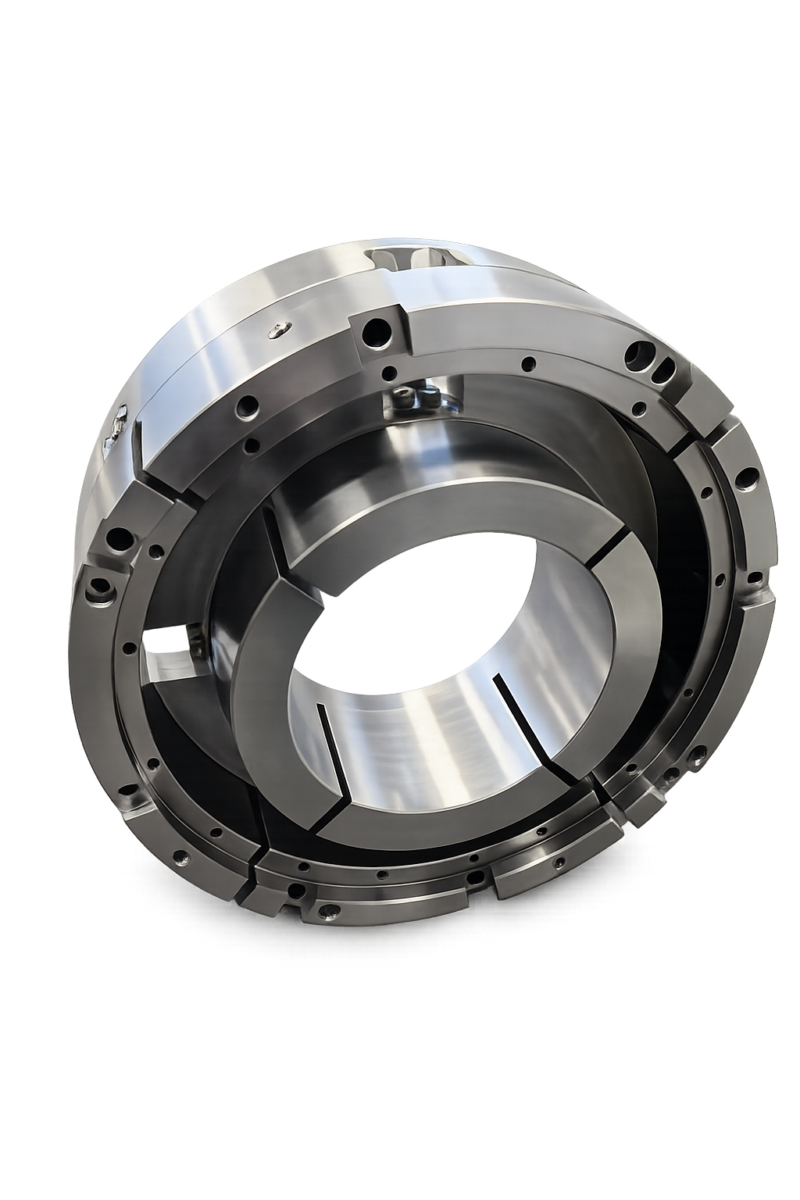

A complete SpinDrive AMB system includes magnetic bearings, sensors, back-up bearings and integration components, all specifically engineered for your machine.
The system can be delivered as a full solution or as individual components, depending on your requirements.
Our engineering team supports your project end-to-end, from feasibility evaluation through to validated field operation. We ensure that you get superior bearing performance, exceptional reliability and extremely low lifetime costs.
The proof.

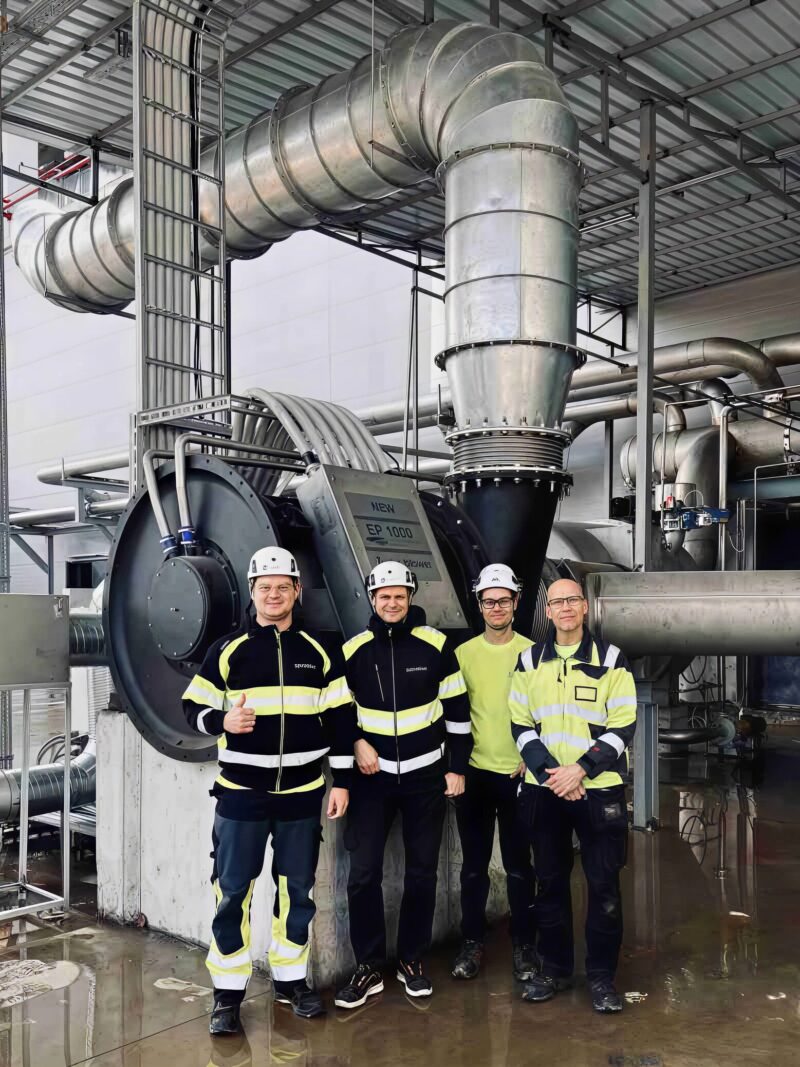

Customer machines running with Magma X800 today
Resources
Downloadable materials
Ready to spec an X800 for your next machine?
Our engineering team is ready to respond quickly with an initial feasibility assessment and application review.
